| Electrical Specifications 2 m | |
| Frequency Range: | 144 - 145 MHz |
| Free Space Forward Gain: | 15 dBi |
| Front to Back Ratio: | 27 dB |
| 3 dB Horizontal Beamwidth: | 33.6 ° |
| G/T | -3.54 |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |

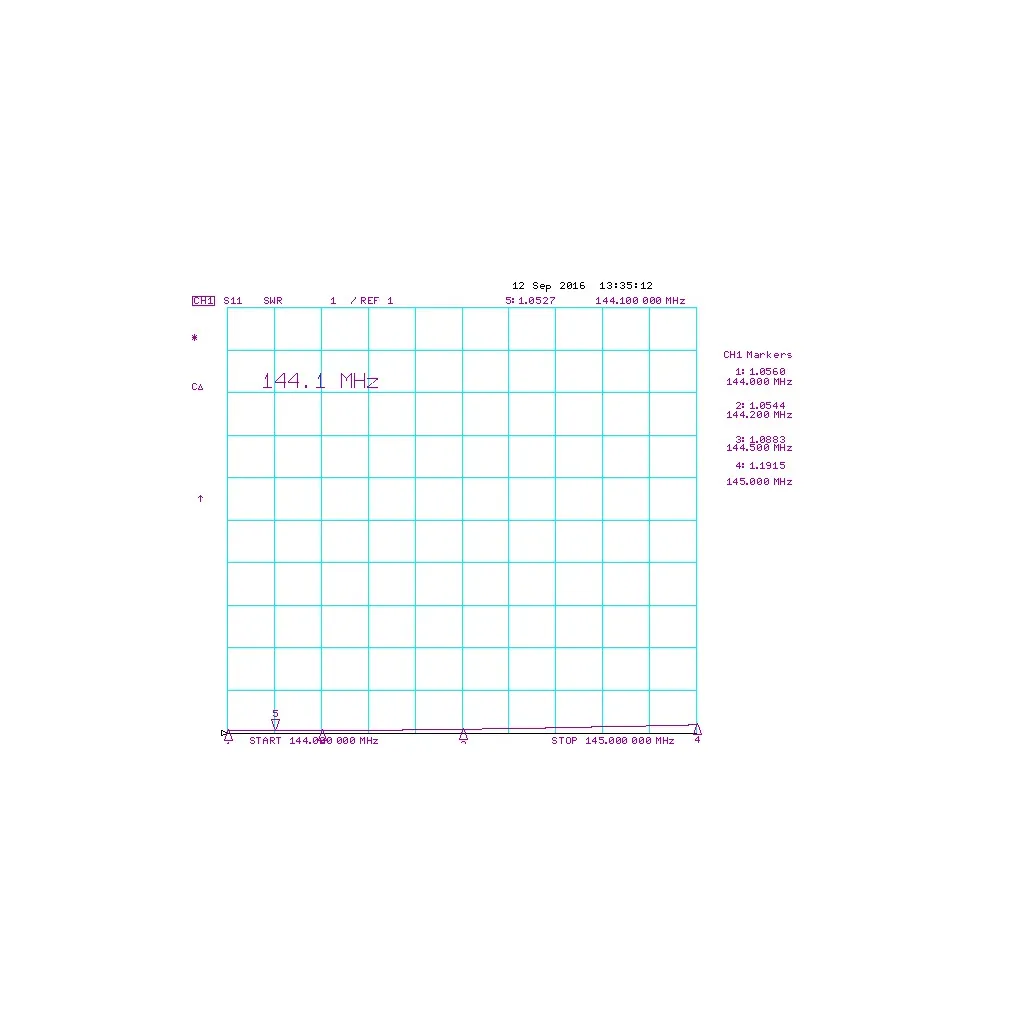

| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 1.5 kW |
| Matching Method: | Direct feed through common mode RG142 Teflon choke (current balun) |
| Connector: | "N" |
| Mechanical Specifications 2m | |
| Boom Length: | 5.84 m |
| Boom Size: | 40 x 40 mm different wall thickness |
| Number of Boom Pieces: | 3 - 4 |
| Element Diameter: | 8 mm Aluminum tube |
| Dipole Diameter: | 8 mm Hard Copper tube |
| Number of elements: | 11 |
| Longest element: | 1.03 m |
| Element Mounting Position: | Below the Boom |
| Guy rope support: | 10 x 20 x 620 mm Stainless Steel |
| Mounting Mast Diameter: | 1-1/4" - 2-3/4" 43 - 70 mm |
| Survival Wind Speed: | 150 km/h |
| Transportation Length: | 1.5 m or 2 m |
| Antenna Weight: | 9.5 kg |
| Electrical Specifications 70 cm | |
| Frequency Range: | 432 - 434 MHz |
| Free Space Forward Gain: | 17.8 dBi |
| Front to Back Ratio: | 27 dB |
| 3 dB Horizontal Beamwidth: | 22.8° |
| G/T | 5.28 |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |

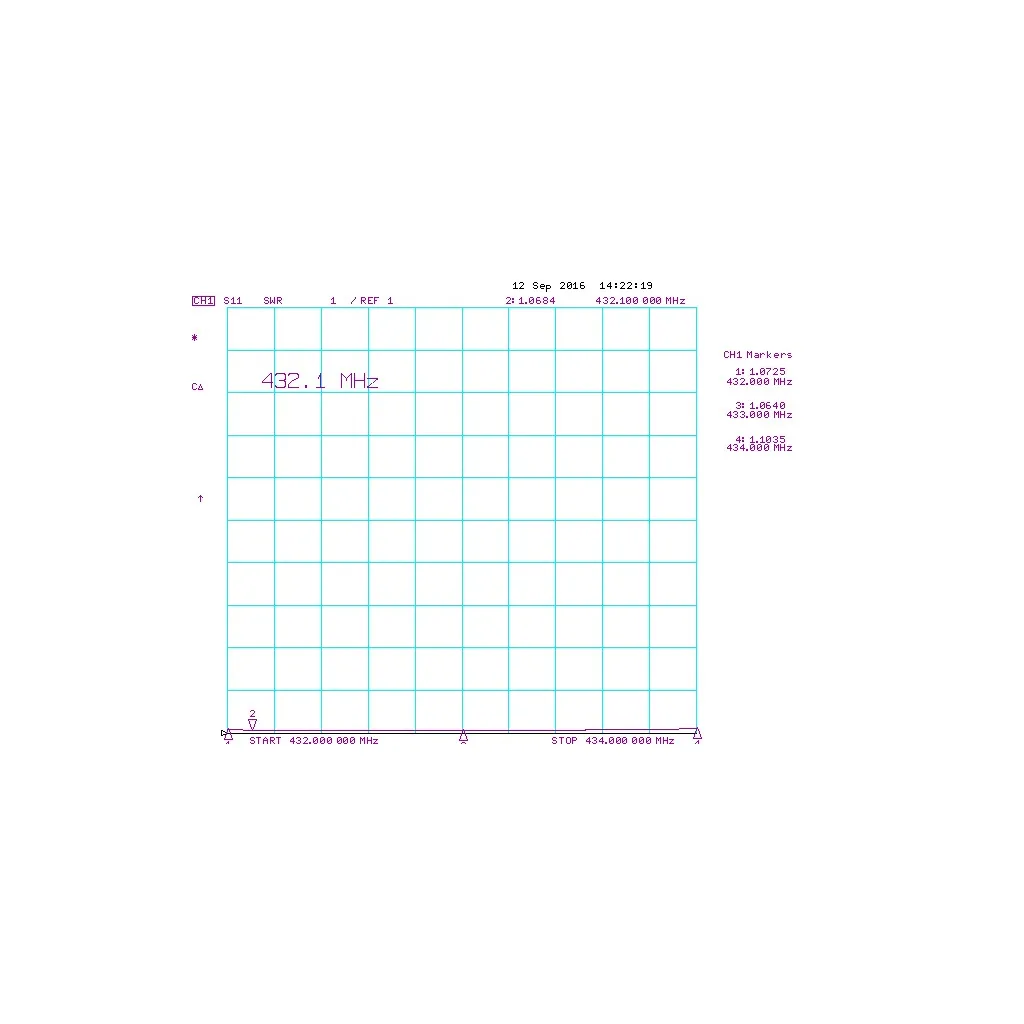

| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 750 W |
| Matching Method: | Direct feed through common mode RG142 Teflon choke (current balun) |
| Connector: | "N" |
| Mechanical Specifications 70 cm | |
| Element Diameter: | 4 mm Aluminum rod |
| Dipole Diameter: | 8 mm Hard Copper tube |
| Number of elements: | 23 |
| Longest element: | 0.35 m |
| Element Mounting Position: | Above the Boom |
