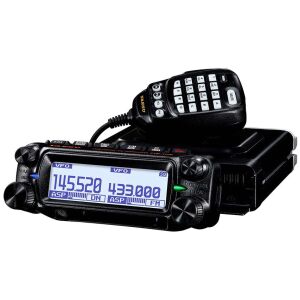

Yaesu FTM-300DE Dual-Band Transceiver 50W

459,00 €
inkl. 19% USt. , zzgl. Versand

Für dieses Produkt erhalten Sie 459 Bonuspunkte

Stück
Verfügbar ab: 30.04.2020 (Vorbestellung möglich)

Lieferzeit: 30 - 33 Werktage


Radio Features:
- 50W Stable High-Power with Heavy Duty Heat Sink including FACC
- Dual Band Opearation (V+V, U+U, V+U, U+V) and Simultaneous C4FM monitoring
- 2-inch High-Resolution QVGA Full-Color TFT Display and Demountable Front Panel Controller
- Memory Channel Band Auto Grouping Function (AIR, VHF, UHF, GEN)
- High-Speed & High-Resolution Band Scope Function up to 63 channels centered around the current VFO frequency
- Heavy Duty-Heat Sink with FACC*
*Funnel Air-Convection Conductor gathers cool air through wide-open front and side air-intakes and concentrates the air-flow to the critical final amplifier area drawn by a rear cooling fan
- 3W Audio Power Speaker with two individual terminals for the external speakers
- Built-in Bluetooth unit which enables hands-free operation with the SSM-BT10 or a commercially available bluetooth headset**
- WiRES-X Portable Digital Node/ Fixed Node with HRI-200
- AMS (Automatic Mode Select) which automatically selects the communication mode by detecting the communication mode of the receiving signal
- Multi-Color Status Indicator showing the operation mode (C4FM/ FM - TX/ RX)
- Digital Group ID (DG-ID) function (Just by setting matching two digit DG-ID "00" - "99", designated link and communication with multiple transceivers can be configured.)
- Digital Group Monitor which automatically checks if the members having the matching DG-ID are within the communication range and display their call-sign if they are in the range
- Built-in 66ch High precision GPS receiver and External GPS device connectivity
- Real-time Navigation displays the position data, distance and direction of other stations in real-time
- Backtrack Feature (navigation function to a pre-registered point)
- Snapshot Feature with the optional microphone MH-85A11U
- Voice Recording Function for received and transmitting voice and audio data
- Micro SD Card Slot (up to 32GB)
- Large-capacty 1104 channel memory
- DTMF Encode/ Memory
- Time-out Timer (TOT) **May not be compatible with all Bluetooth products.


Supplied Accessories:
DTMF Microphone SSM-85D
Radio unit Mounting Bracket
Control Cable for the operation with mounting front panel
Control Cable 10ft (3m) for the operation with demounting front panel
USB Cable
DC Power Cable
Operating Manual


Specifications:
Frequency Ranges:
A/B Band RX: 108 - 137MHz (Air Band)
137 - 174MHz (144MHz HAM / VHF Band)
174 - 400MHz (GEN)
400 - 480MHz (430MHz HAM / UHF Band)
480 - 999.99MHz (GEN, USA Cellular Blocked)
TX: 144 - 148MHz, 430 - 450MHzCircuit Type: Double-Conversion Superheterodyne

Modulation Type: F1D, F2D, F3E : Variable Reactance Modulation
F7W : 4FSK (C4FM)
RF Power Output: 50 W/25 W/ 5 W
Memory Channels: 1104
Case Size(W x H x D): Radio Unit 5.47"x 1.66"x 5.2" (139 x 42 x 132 mm)w/o Fan
Controller 5.47"x 2.09"x 0.7" (139 x 53 x 18 mm)w/o Knob
Weight: 2.43lbs (1.1kg) with Radio Unit, Controller, Control Cable

Hersteller:
Kategorie: Yaesu Mobilfunk
Artikelnummer: FTM-300DE
